Festool Drilling template BS-KV D15

The DOMINO basic structure connectors and furniture connectors enable stable yet flexible furniture designs that can be separated again. Because of their great versatility, they provide for a very large range of applications – from corner panel joints to centre panel joints to joints between a series of holes. For unique flexibility, speed and efficiency.

Strengths and benefits

• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• The flush-screwed fixture elements protect each furniture component from being scratched
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm.

Main areas of use

• Drilling template for machining the DOMINO D 8 mm joint fixture

Product details

It could not be easier

There is no easier way of producing a detachable corner joint. The drill template – which can be used with an extraction system – specifies the exact position of the drilled hole and the correct drilling depth, therefore guaranteeing error-free work.

Perfectly aligned

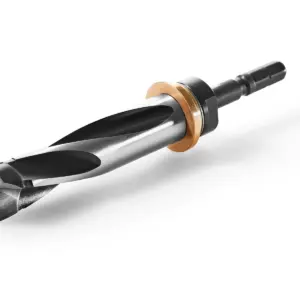

The 15 mm hinge location cutter combines with the DOMINO drill template to form an unbeatable team. As a result, correctly positioning the fixture hole is quick and easy.

Perfectly combined

The wood chips are removed as soon as they are created by means of the drill template, which can be used with an extraction system. The simplest way to use this is with the remote control directly on the suction hose for switching on the extractor.

Notes

• drill template is required for drilling holes in the surface of the DOMINO D 8 mm joint fixture
• adapted to D15 hinge location cutter (203165)

Compatible with

for the DF 500, DF 500 R, DFC 500
