FESTOOL, FL578120, DFC 500 E-Basic Cordless joining machine, BODY ONLY

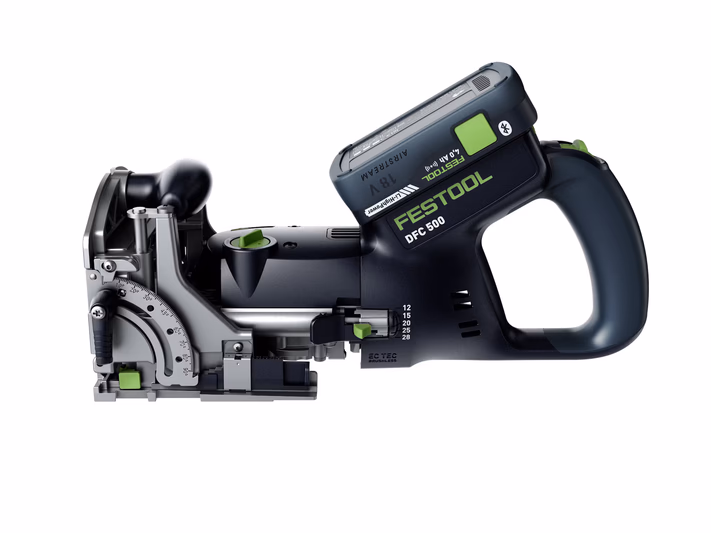

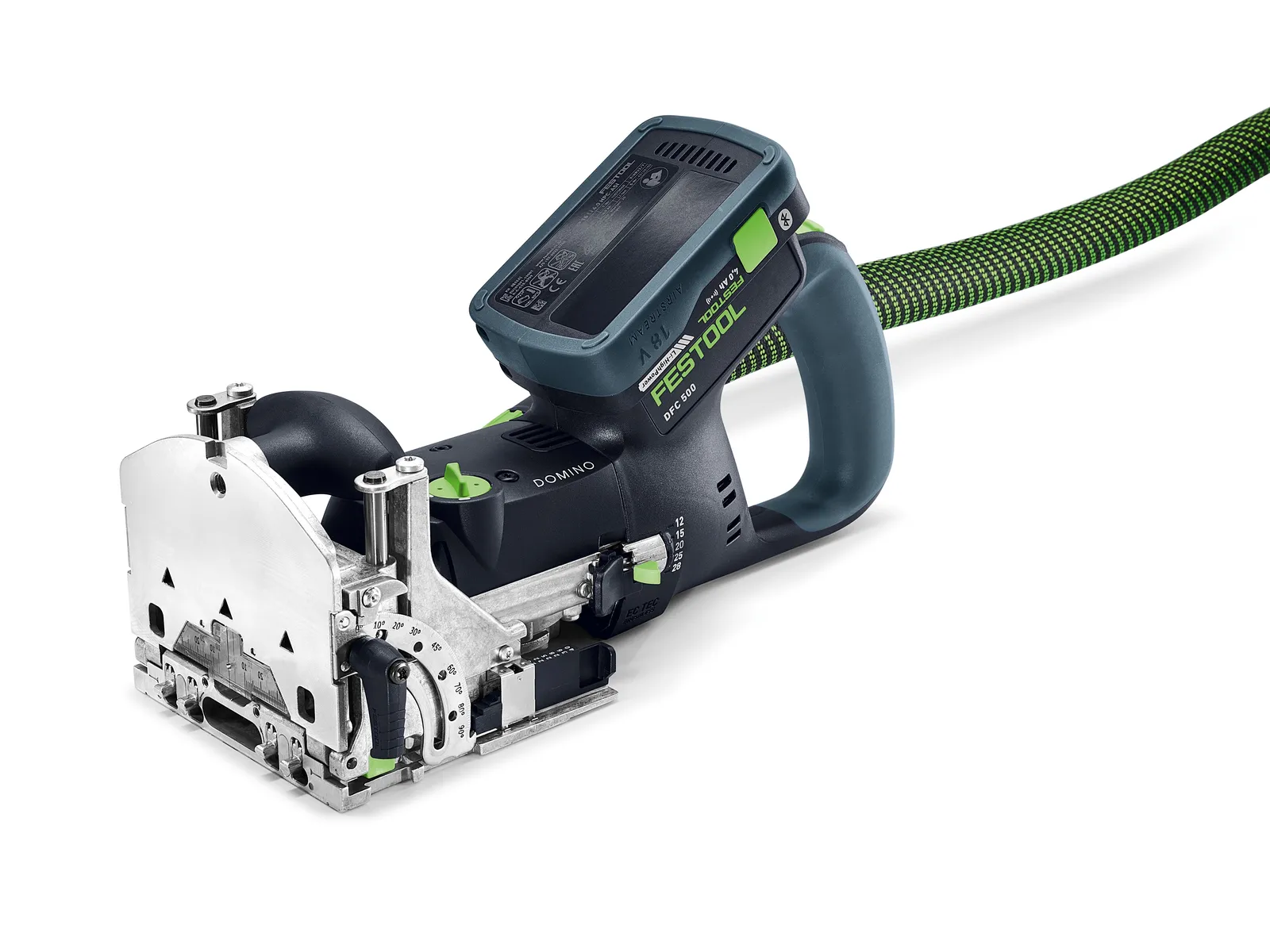

Festool DFC 500 Cordless Joining Machine — Mobile DOMINO Precision

Every wooden joint has its perks. The DOMINO jointing system, which includes a cordless joining machine and DOMINO dowels, brings them all together. The unique pendulum routing motion of the DOMINO creates precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slotted and tenon joints with the flexibility of flat dowels. It's perfect for both delicate and sturdy pieces in the home and outdoors. Plus, the cordless version with its comfy spade handle gives you extra ease without any cables to worry about.

• Independent: 100% mobile with battery – whether you're in the workshop or on-site.
• Ergonomic: Work without fatigue thanks to the comfy handle.
• Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.
• Quick and easy: Built-in stop pins for repeating dowel placement.
• Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.
• Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm and in two types of wood for indoor and outdoor use.
• Sorted: The routing depths are just right for the dowel lengths and panel materials.
• Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.
• System: Accessories are a perfect fit for the whole DOMINO system.

Performance features

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

CLEANTEC

Integrated bayonet fitting as the connecting element between the extractor and the tool.

FastFix

Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

Main applications

• Frames and frame joints in solid wood

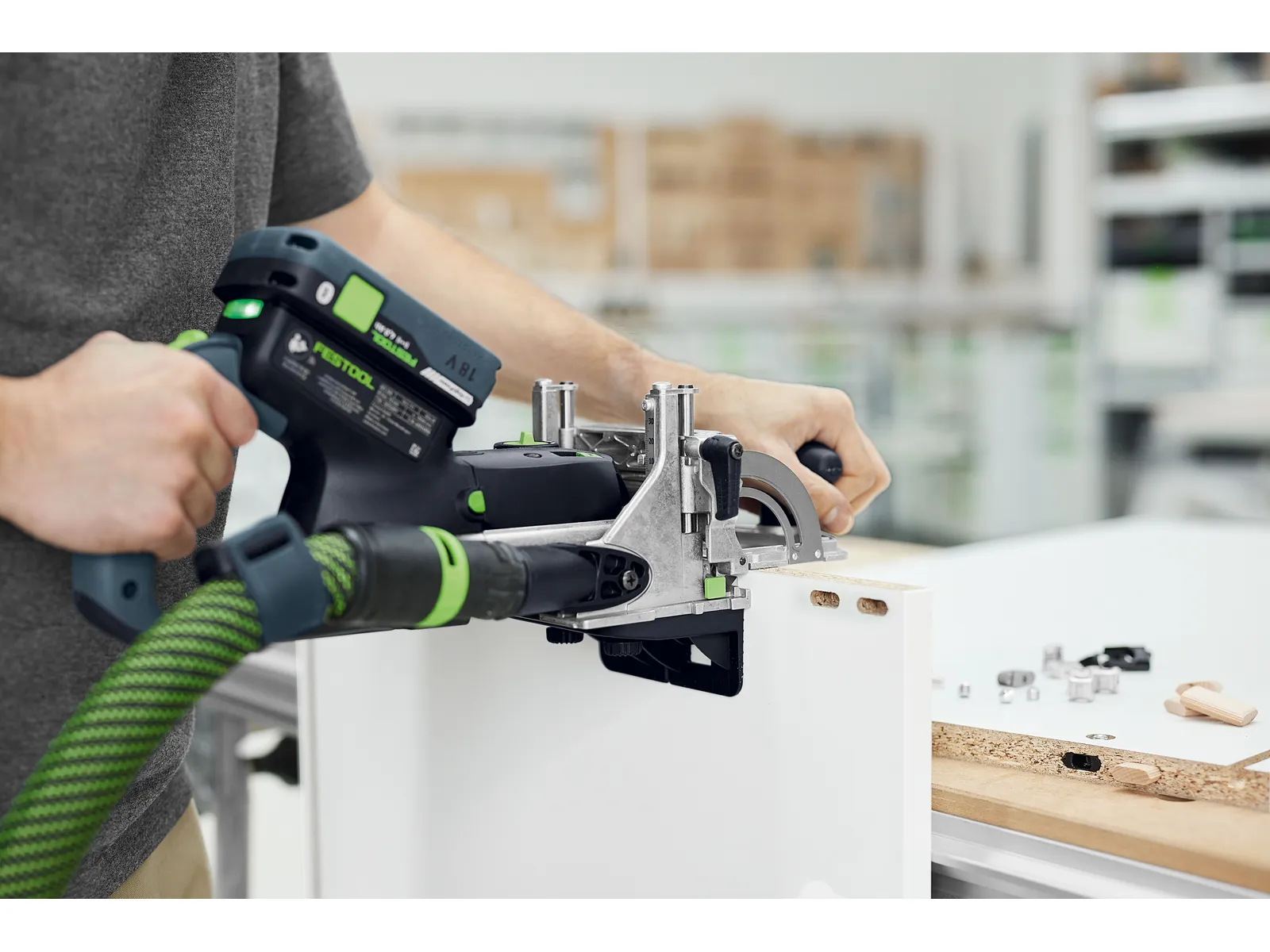

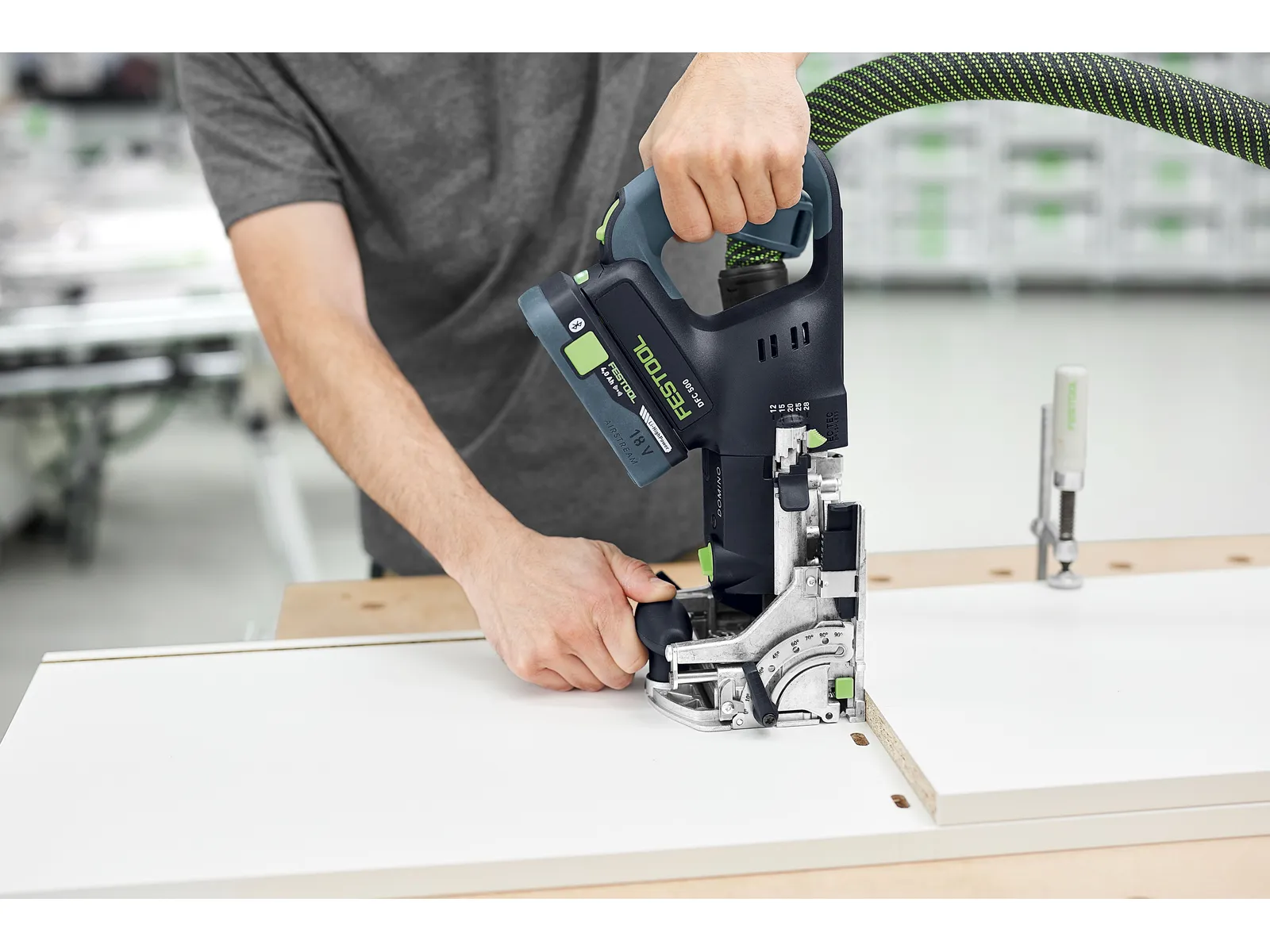

• Panel joints in various types of panel materials
• Twist-proof connections, even with small cross sections
• Creation of stable mitre joints
• Easy-to-remove corner connectors with the DOMINO connectors
• Joining thin bits from 12 mm up

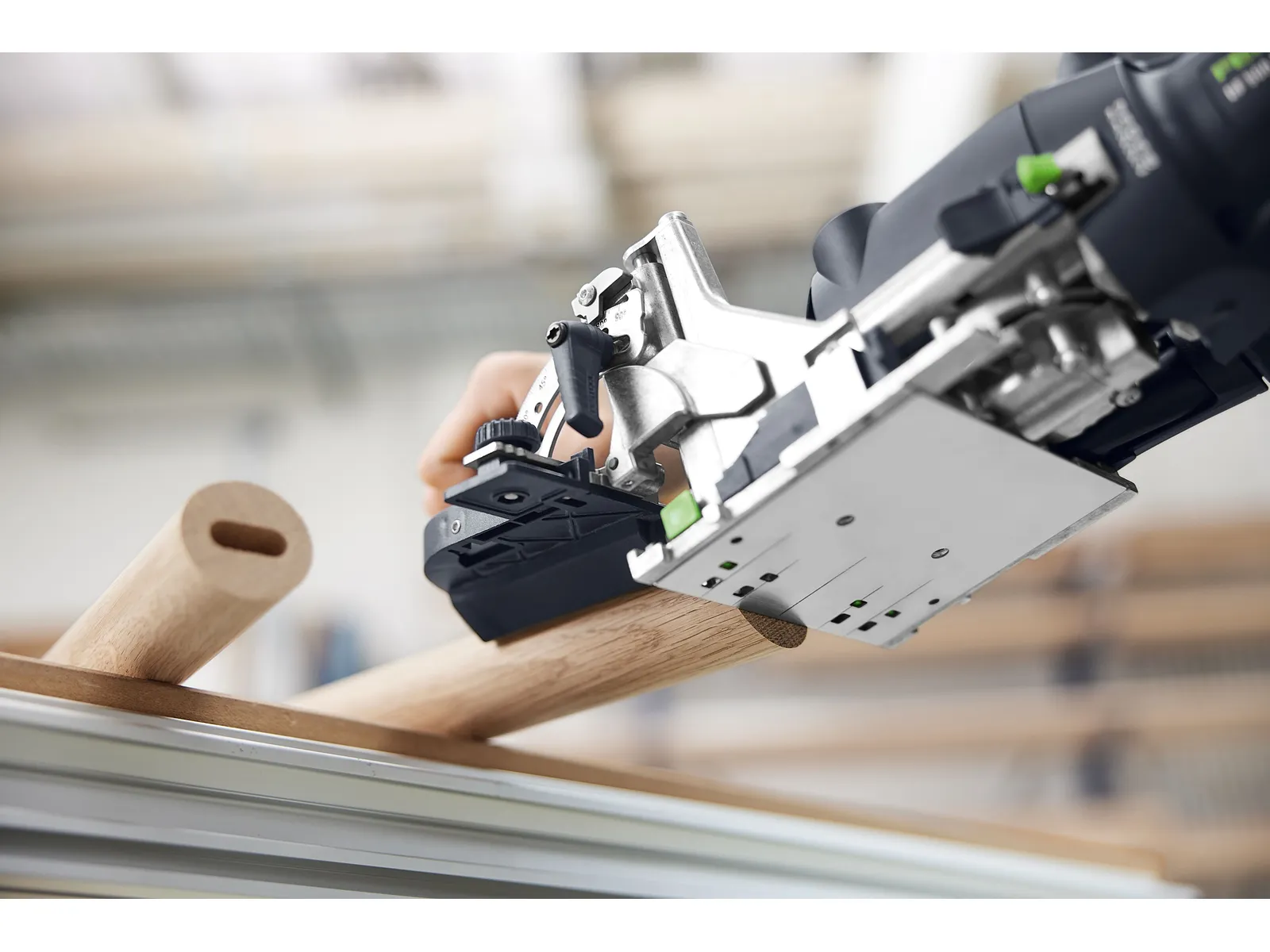

• Round profile connection with the handrail fence

Technical data

Technical data

Motor speed   18 500 min⁻¹

Depth stop for routing depth  12, 15, 20, 25, 28 mm

Max. routing depth   28.00 mm

DOMINO groove cutter diameter    4, 5, 6, 8, 10 mm

Routing height adjustment     5 - 30 mm

Mitre routing    0 - 90 °

Dust extraction connection diameter    27 mm

Drive type  Battery

Product weight without accessories   3.40 kg

Transport weight incl. accessories   6.00 kg

Battery voltage (rated voltage)   18 V

Noise and vibration values

Routing: Uncertainty (vibration) K    1.50 m/s²

Routing: Uncertainty (noise) K     1.50 dB

Routing: Total vibration average, Ah    2.50 m/s²

Routing: Standards series EN    60745-2-19

Routing: A-weighted sound pressure level, LpA   87.00 dB(A)

Routing: A-weighted sound power level, LWA   98.00 dB(A)

Contains

4 Article

DOMINO router

D 5-NL 20 HW-DF 500

Additional stop

ZA-DF 500/700

open ended spanner, WAF 8

Systainer³

SYS3 M 237

EAN          4014549441435

Festool Joining Machine — Key Features & Benefits

• Cordless 18V DOMINO Technology: Pendulum routing action delivers precise, twist-proof elongated holes with consistent depth and spacing for flawless mortise joints.
• Mobile Workshop Solution: Fully cordless design on 18V platform offers complete mobility between workshop and on-site applications without trailing leads or generator dependency.
• CLEANTEC Dust Extraction: Antistatic bayonet fitting and efficient dust collection keep your workspace clean whilst protecting woodwork from debris damage during joining.
• FastFix Tool-Change System: Rapid bit and dowel changeover without tools, allowing quick transitions between different joint types and sizes throughout your working day.
• Versatile Joint Capability: Routes depths to 28 mm and supports DOMINO dowels from 4–10 mm, suitable for frames, panels, mitres and removable connectors in solid wood and engineered materials.

Applications & Use Cases

Irish woodworking professionals and joinery specialists choose the Festool joining machine for precision cabinet making, architectural panelling, bespoke furniture assembly and structural framework joining. The festool joining machine creates reliable twist-proof joints for kitchen installations, fitted wardrobes, door frames and modular construction, delivering cabinet-quality results that meet professional standards across residential and commercial projects.

Who Is This Joining Machine For?

The Festool DFC 500 is purpose-built for professional cabinetmakers, furniture makers, architectural joiners and high-end carpentry specialists who demand precision joinery. If you value repeatable accuracy, minimal setup time between joints, and dust-free working environments, this cordless joining machine brings workshop-quality results to on-site assembly and modular installation work.
