€781.00
Our masterpiece. Decisively improved. Now twice as fast.
Millions of saws do not lie: The TS has always stood out with its absolute precision cuts, maximum power and extreme durability. The usual reliability remains – but the working speed is unprecedented: The TS 55 now saws at up to twice the speed. In addition, the new generation of cutting blades guarantees perfect cutting quality with maximum cutting performance. With accessories, such as guide rails and the angle stop, or sophisticated and tried-and-test details, such as the splinter guard and extraction system perfectly matched to the machine, the TS 55 provides excellent work results and a top-class sawing system – for every challenge.
The concentrated torque of our plunge-cut saw enables work progress at up to twice the speed with an increased saw blade service life. Our new generation of saw blades impresses users when combined with maximum cutting performance and perfect cutting quality.
With the clip-on splinter guard in combination with the guide rail, it is even possible to saw on both sides without virtually any splinters.
The TS 55 enables precise work. The cutting edge from 90° to 47° remains unchanged even when the saw swivels.
Combined with our guide rails, a wide range of saw blades, the adapted extraction system, saw table, angle stop and splinter guard, we offer a top-class sawing system.
The spring-loaded guide wedge runs in front of the saw blade to prevent it from jamming and makes it easier to insert the blade in existing joints.
The angles 0° and 45° can be selected directly using the locking positions. Undercuts are also possible with the extended adjustment option from -1° to 47°.
Transparent sliding viewing window and the additional markings for the starting and end point provide a good view of the saw blade.
The slimline housing allows users to make cuts up to the edges and in close proximity to the wall (12 mm).
Our fitted control electronics enable speed control for temperature monitoring, a quick-acting brake and perfect adaptation to the material (for FEBQ variant only).
Always adapted to the working material. The FastFix spindle stop makes it extremely easy to change the saw blade. The correct saw blade is fitted in just a few steps and the sawing speed is adapted to the material.
Easy to read and adjust: The dual cutting depth scale for working with or without a guide rail. Now even easier thanks to extra large font and precision adjustment.

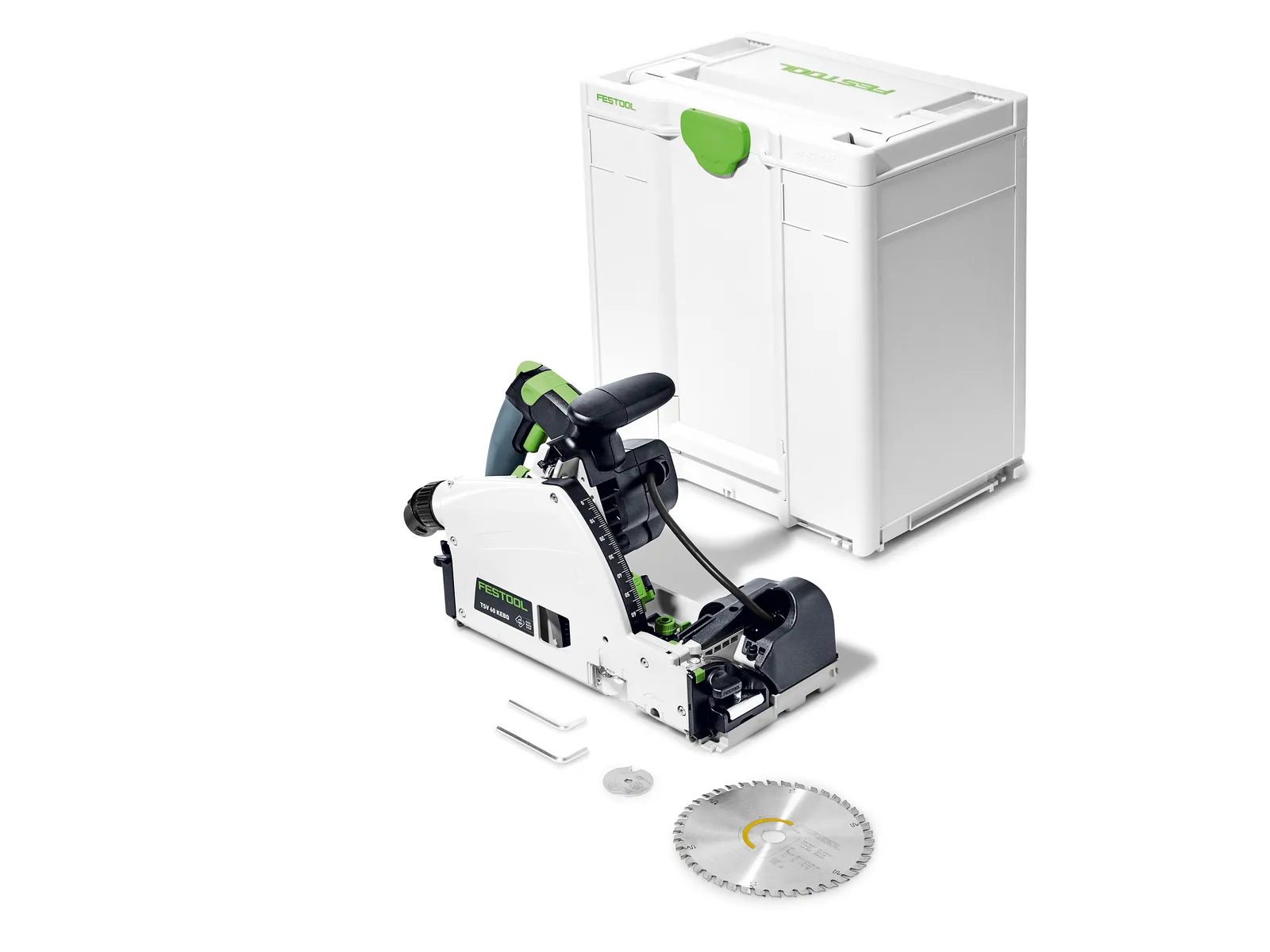

circular saw blade WOOD FINE CUT HW 160 x 1, 8 x 20 WD42, splinterguard, Flag window; vision panel, hex key, WAF 5, plug it-power cable (4 m), Systainer SYS3 M 337
| Product weight without accessories | 4.80 kg |
|---|---|
| Drive type | Mains |
| Transport weight incl. accessories | 8.1 kg |
| Power consumption | 1200 W |
| Idle engine speed | 2000 - 5800 min⁻¹ |
| Diameter of the saw blade | 160.00 mm |
| Angular range | -1 - 47 ° |
| Cutting depth | 0.00 - 55.00 mm |
| Cutting depth | 45° 43 mm |
| Dust extraction connection diameter | 27/36 mm |
| Cable length | 4.00 m |
| Sawing wood: Total vibration average, Ah | 2.50 m/s² |
| Sawing metal: Total vibration average, Ah | 2.50 m/s² |
| Sawing wood: Standards series EN | 62841-2-5 |
| Sawing wood: Uncertainty (noise) K | 3.00 dB |
| Sawing metal: Standards series EN | 62841-2-5 |
| Sawing wood: Uncertainty (vibration) K | 1.50 m/s² |
| Sawing metal: Uncertainty (noise) K | 3.00 dB |
| Sawing metal: Uncertainty (vibration) K | 1.50 m/s² |
| Sawing wood: A-weighted sound pressure level, LpA | 93.00 dB(A) |
| Sawing wood: A-weighted sound power level, LWA | 101.00 dB(A) |
| Sawing metal: A-weighted sound pressure level, LpA | 93.00 dB(A) |
| Sawing metal: A-weighted sound power level, LWA | 101.00 dB(A) |
