Festool Joining machine — FL576422

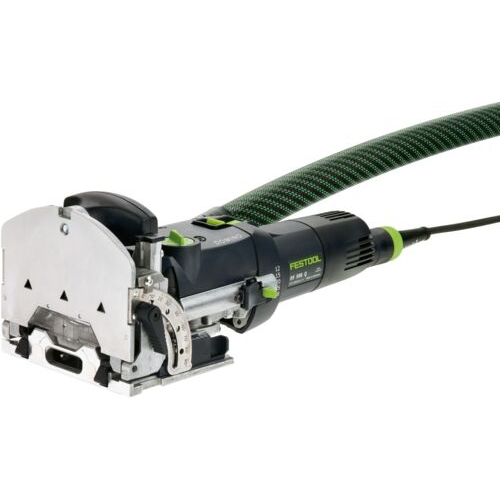

Festool FL576422 Domino Joining System DF 500 420Watt Q-Set GB
Oval shape, larger glued area, more stability. The Domino system unites the precision of around dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, Domino in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And Domino can do much more: rack joints, frame joints, drawer joints, etc.
Features:
- One system for all panel, frame and rack joints
- Patented routing principle unique to handheld machines for accurate work with no kickbacks
- Stops that are quick and easy to adjust, for accurate results
- Rotation-proof joint with Domino dowels providing maximum stability
Specification:
- Power Consumption: 420 watt
- Idle Engine Speed: 24300 min-1
- Depth Stop for Routing Depth : 12, 15, 20, 25, 28 mm
- Domino Slot Cutter Diameter: 4, 5, 6, 8, 10 mm
- Routing Height Adjuster with Scale: 5-30 mm
- Movable Stepped Stop : 16, 20, 22, 25, 28, 36, 40 mm
- Mitre Routing: 0-90 degree
- Weight : 3.2 kg
Applications:
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
- Exhibition stand construction
- For panel joins
- For frame and rack joints

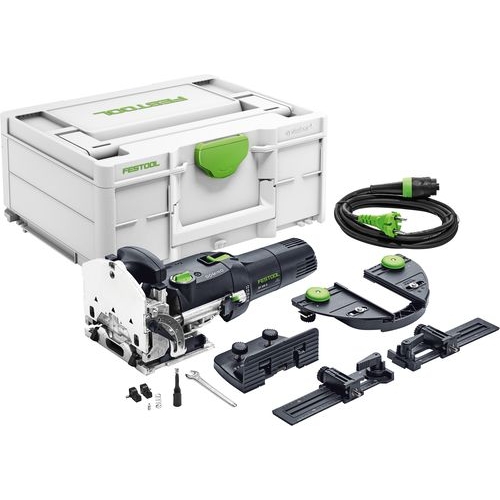

Includes:
- Domino cutter D5
- Support bracket
- Trim stop
- Cross stop
- Operation tool
- Systainer SYS 2 T-LOC
FESTOOL 576422 Joining machine DF 500 Q-Set 230V GB
Patented routing principle unique to hand-held machines for accurate work with no kickbacks
Stops that are quick and easy to adjust, for accurate results
Rotation-proof joint with DOMINO dowels providing maximum stability
System accessories compatible with both DOMINO jointers
Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Oval shape, larger glued area, more stability. The DOMINO system unites the precision of a round dowel with the flexibility of a traditional flat dowel – the perfect solution for panel joints. The system consists of the DF 500 dowel jointer, DOMINOs in different sizes and a wide range of accessories for special applications. The result: extremely strong, invisible joints. And DOMINO can do much more: rack joints, frame joints, drawer joints, etc.
DOMINO cutter D5, Additional stop, trim stop, cross stop, open ended spanner, WAF 8, plug it-power cable (4 m), Systainer SYS3 M 187
Product strengths
- Patented routing principle unique to hand-held machines for accurate work with no kickbacks
- Rotation-proof joint with DOMINO dowels providing maximum stability
- Stops that are quick and easy to adjust, for accurate results
- System accessories compatible with both DOMINO jointers
- Varied use with dowel sizes from 4 x 20 mm to 10 x 50 mm
Technical data
Idle Motor speed 25 500 min⁻¹
Depth stop for routing depth 12, 15, 20, 25, 28 mm
DOMINO slot cutter dia. 4, 5, 6, 8, 10 mm
Routing height adjustment 5 - 30 mm
Dust extraction connection diameter 27 mm
Routing: Uncertainty (vibration) K 1.5 m/s²
Routing: Uncertainty (noise) K 3 dB
Routing: Total vibration average, Ah 3 m/s²
Routing: Standards series EN 60745-2-19
Routing: A-weighted sound pressure level, LpA 84 dB(A)
Routing: A-weighted sound power level, LWA 95 dB(A)
Product weight without accessories 3.5 kg
Items included
- Additional stop
- DOMINO cutter D5
- Systainer SYS3 M 187
- cross stop
- open ended spanner, WAF 8
- plug it-power cable (4 m)
- trim stop
Categories / Category assignments
Logistic details
Customs tariff number
84672985
Country of origin
Germany
Areas of application
- Exhibition stand construction
- For frame and rack joints
- For panel joins
- Furniture manufacture
- Shopfitting/Interior fitting
- Window construction
Festool joining machine — Key Features & Benefits
- Professional Performance: Engineered for demanding trades and heavy-duty application across diverse materials and work environments without compromise.
- Reliable Construction: Robust design and quality materials ensure long service life with minimal maintenance, protecting your investment over years of professional use.
- Efficient Operation: Advanced engineering reduces effort and time per task, enabling faster completion and higher productivity on every project undertaken.
- Safety Features: Integrated protection systems keep operators safe while working, reducing risk and ensuring compliance with modern workplace safety standards.
- Easy Maintenance: Simple access to wear parts and intuitive design reduce downtime, keeping your tool ready for the next job without delay.
Applications & Use Cases
Irish tradespeople depend on quality tools for countless professional applications. Whether handling construction, carpentry, joinery or finishing work, a reliable joining machine delivers consistent results. Professionals throughout Ireland trust quality equipment to complete projects on time and to specification.
Who Is This Joining machine For?
Professional tradespeople and contractors need reliable tools. The Festool Joining machine suits those who demand dependable performance. Whether managing single jobs or multiple projects, this tool ensures professional results every time.
Why Buy Your Festool Joining machine from Tool Depot?
Tool Depot Ireland supplies authentic Festool products with full technical support. Our nationwide delivery brings your joining machine quickly to site. Backed by Irish technical expertise and genuine spare parts availability, we ensure your investment performs reliably.
