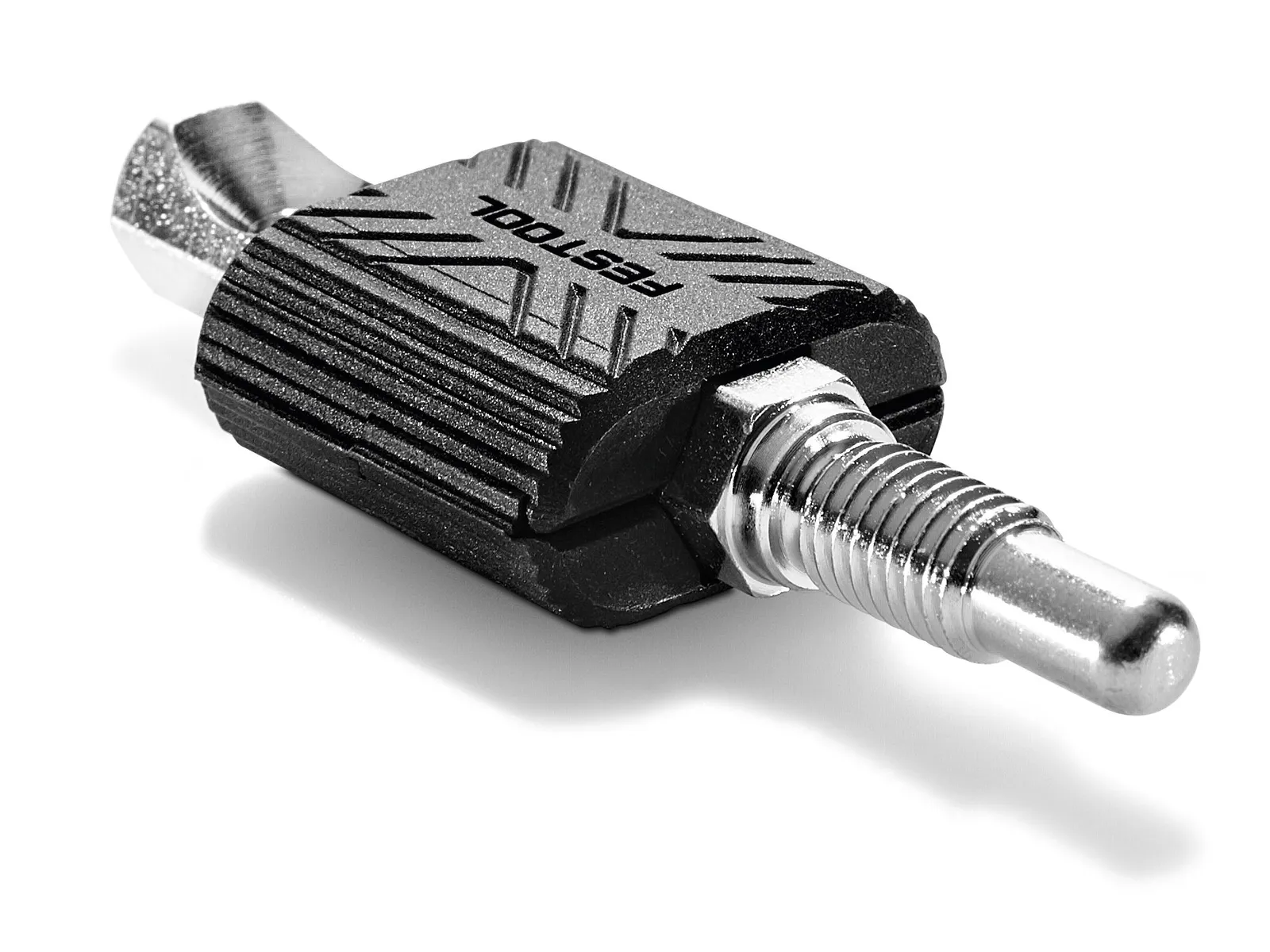

Festool Anchor bolt SV-AB D14/32

The DOMINO connectors: Create perfect wooden joints more quickly and easily than ever before. With the corner and surface connectors for the DOMINO XL DF 700 joining machine, we’ve taken the DOMINO concept to the next level in a revolutionary way. Designed for frames, racks, and panel joints that don’t just stand out for their outstanding precision and stability, but also for their incredible flexibility and unmatched efficiency.

Strengths and benefits

• The Anchor bolt SV-AB D14, split anchor SV-SA D14 and cross anchor SV-QA D14 come together to make the Corner connection. You can get all the parts either in the DOMINO SV-SYS D14 connection Systainer, as an EV/32 set, or as separate individual pieces.
• The corner and flat connector system for the DOMINO XL DF 700 joining machine enables stable connections that can be separated again at a material thickness of 30 mm or higher
• For frame and rack joints (corner connectors) and board connections (flat connectors) that will impress you with extreme precision and stability as well as maximum flexibility and unique efficiency
• Extremely quick thanks to simple milling using machine stops or pencil markings. No template or other accessories required
• Extremely stable with dowel and clamping element for strong connections. High pulling and tightening distance. Extremely high pull-out and load forces
• Extremely flexible and can be detached again quickly if necessary
• With cover caps in three colours for a high-quality corner connection appearance

Main areas of use

• For stable furniture designs that can be separated again such as beds, tables, etc.
• The SV-SA D14 split anchor expands within the wood when it is screwed in
• As an option for covering DOMINO milled holes: Cover caps in silver, dark brown or light brown (SV-AK D14 slr, SV-AK D14 brn1 and SV-AK D14 brn2)

Product details

The corner connection

Not only extremely quick and extremely stable, but also boasting a high-quality appearance: The only visible part is the cover cap, which is clipped over the oval milled holes that are typical to DOMINO.

Modular components

The Anchor bolt SV-AB D14 works together with the Split anchor SV-SA D14 and the Cross anchor SV-QA D14 to create the Corner connection. You can find all the parts either in the DOMINO connection Systainer SV-SYS D14, as an EV/32 set, or as separate individual pieces.

Stable and detachable

The corner and flat connector system for the DOMINO XL DF 700 joining machine enables stable connections that can be separated again at a material thickness of 30 mm or higher.

Connect quickly, and release if necessary

For frame and rack joints (corner connectors) and board connections (flat connectors) that will impress you with extreme precision and stability as well as maximum flexibility and unique efficiency.

Extremely quick

Via simple milling using machine stops or pencil markings. No template or other accessories required.

Extremely stable

Dowel and clamping element for a strong connection. Extremely high pull-out and load forces.

Extremely flexible

Connection can be detached again quickly if necessary. For frame and rack joints (corner connectors) and board connections (flat connectors) at material thicknesses of 30 mm or higher.

Notes

• for processing using the DOMINO XL DF 700 joining machine
• corner connectors for frame and rack joints at material thicknesses of 30 mm or higher
• in conjunction with SV-SA D14 split anchors and SV-QA D14 cross anchors for creating corner connections

Compatible with

for DF 700

Scope of delivery

64 x dowel half-shells
